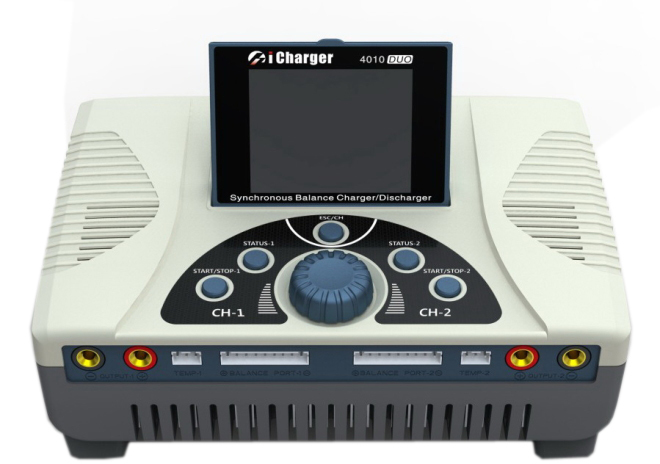

iCharger 4010 Duo




The iCharger 4010 Duo is the latest heavyweight addition to the iCharger range. iChargers first independent two channel charger, producing more output power than any other charger currently available!


Input Voltage:9.0-50 Volts
Max Input Current: <65 Amp
DC Charge Current Range: 70A@Syn. Mode – 40A@Asyn. Mode
Amps Discharge Current Range: 0.05 – 7.0 Amps
Maximum Charge Power Capacity: 2000W (Channel 1400W @input > 23.5V)
Maximum Discharge Power Capacity: 200W (Channel 130W)
Maximum Regenerative Discharge Capacity: 2000W (Channel 1400W)
Current Drain for Balancing: 2.4A@Syn. Mode 1.2A@Asyn. Mode
Balance Accuracy: <10mv
Lithium (LiPo/Lilo/Life) Battery Cell Count: 1-10 series (Per Channel)
NiMh/NiCd Battery Cell Count: 1-25 Series (Per Channel)
Pb (Lead Acid) Cell Count: 1-18 series 2-36v (Per Channel)
Battery Setup Memories: 64
Intelligent Temperature Control: Yes
PC Connect: USB Port
Weight: 1.47 Kg
Dimensions (LxWxD): 210x140x81
