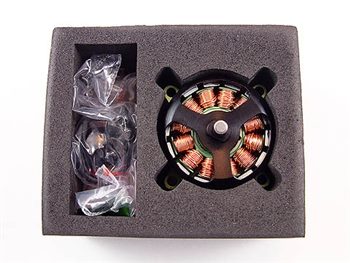

Cobra C-2203/34 2300Kv Brushless Motor




The best you can have for your indoor foamies!

Recommended by one of the best 3d pilots in the world.

Motor Specifications:

Stator Diameter: 22.0 mm (0.866 in)
Stator Thickness: 3.0 mm (0.118 in)
Number of Stator Slots: 12
Number of Magnet Poles: 14
Motor Wind: 34 Turn Delta
Motor Kv : 2300 RPM per Volt
No Load Current (Io): 0.56 Amps @ 8 Volts
Motor Resistance (Rm) 0.153 Ohms
Motor Resistance (Rm) 0.102 Ohms
Maximum Continuous Current: 10 Amps
Max Continuous Power (2-cell Li-Po) 75 Watts
Motor Weight 17.5 grams (0.62 oz.)
Outside Diameter 26.8 mm (1.055 in.)
Shaft Diameter 3.00 mm (0.118 in.)
Motor Body Length 11.4 mm (0.449 in.)
Overall Shaft Length: 19.6 mm (0.772 in.)
Motor Timing: 5-10 degrees
PWM Frequency: 8 KHz
