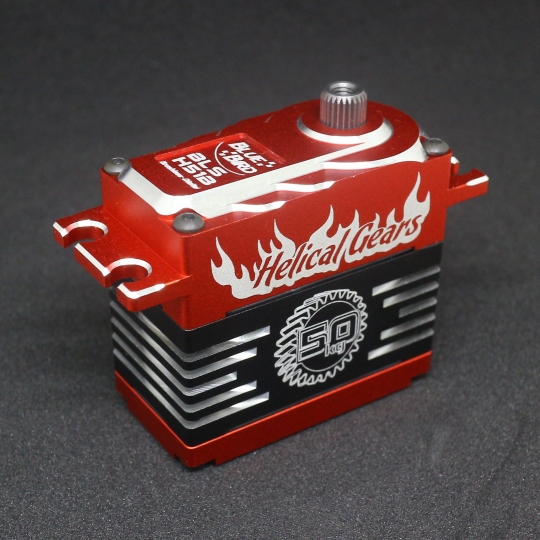

BLS-H51B (All New Design)




Performance Specifications:

Torque At 6.0V 44.7 kg-cm / 620.8 oz-in
Torque At 7.4V 53.1 kg-cm / 737.6 oz-in
Torque At 8.4V 57.5 kg-cm / 798.7 oz-in
Speed At 6.0V 0.12 sec / 60°
Speed At 7.4V 0.10 sec / 60°
Speed At 8.4V 0.09 sec / 60


Protection Mechanism
Soft Start Protection A soft start to a neutral position.
Over Voltage Protection Over 9.0V drive the protection mode and 8.4V return to normal mode.
Low Voltage Protection Lower than 4.0V, drive the protection mode and 4.5V return to normal mode.
Locked Rotor Protection Stall in 5 sec, output torque goes down.
Temperature Protection Overheat 85 degrees C, drive the protection mode and down 75 degrees C
return to normal mode.
